What is ADAS? Features, Sensors, and Levels of Driving Automation Explained

Every day, millions of drivers hit the road, and while vehicles have become faster and smarter, human error remains the leading cause of road accidents worldwide. To tackle this challenge, automakers are turning to Advanced Driver Assistance Systems (ADAS), a technology designed to make driving safer, smarter, and more comfortable.

According to Grand View Research, the global ADAS market valued at USD 34.65 billion in 2024 is expected to nearly double to USD 66.56 billion by 2030, growing at a CAGR of 12.2%. This growth shows that ADAS isn't just an add-on feature anymore, it's quickly becoming a must-have in modern cars.

So, what exactly is ADAS, how does it work, and why is everyone talking about it? In this article, we'll break it down and explore why it matters for the future of driving.

What is ADAS?

ADAS stands for Advanced Driver Assistance Systems, a collection of technologies designed to help drivers operate their vehicles more safely and efficiently. These systems don't fully replace the driver, but they assist by monitoring the surroundings and providing alerts or automated actions to prevent accidents.

6 Levels of Driving Automation

Driving automation is classified into six levels, from Level 0 (no automation) to Level 5 (full automation), as defined by SAE International. Each level defines the extent to which a vehicle can control steering, acceleration, braking, and monitoring of the driving environment, ranging from full driver control to complete autonomy. It's crucial to understand that ADAS primarily falls within the Level 0 to Level 3 spectrum, where the system's purpose is to assist the driver.

Top 10 Common Features of ADAS

Modern vehicles are increasingly equipped with ADAS features, which help drivers stay safer and more aware on the road. Common features include:

Adaptive Cruise Control (ACC)
Maintains a set speed like traditional cruise control but can automatically adjust the vehicle’s speed to keep a safe distance from the car ahead.

Lane Departure Warning (LDW)
Alerts the driver if the vehicle begins to drift out of its lane without using a turn signal, helping prevent unintentional lane changes.

Forward Collision Warning (FCW)
Monitors the road ahead and warns the driver of a potential collision with another vehicle or obstacle.

Automatic Emergency Braking (AEB)
Works with FCW by automatically applying the brakes if the driver does not react quickly enough to avoid a collision.

Blind Spot Detection (BSD)
Uses sensors to detect vehicles in the driver’s blind spot and provides a visual or audio warning when changing lanes.

Rear Cross Traffic Alert (RCTA)
Helps when reversing by warning the driver of approaching vehicles or pedestrians crossing behind the car.

Parking Assistance
Guides the driver during parking, sometimes taking over steering control, to make parallel or tight-spot parking easier and safer.

Driver Drowsiness Detection
Monitors driver behavior (such as steering patterns) and alerts them if signs of fatigue or inattentiveness are detected.

Glare-Free High Beam Lights
Automatically adjusts headlights to avoid blinding oncoming drivers while still giving the best possible road visibility.

Traffic Sign Recognition (TSR)
Detects and reads road signs (like speed limits or stop signs) and displays them on the dashboard to keep the driver informed.

Learn more about oToBrite ADAS features

How ADAS Works and Sensor Types

How does ADAS Work?

ADAS systems operate through three functional layers that work together to enhance driving safety: perception, planning (driving policy), and action/alert.

Perception Layer
This is the "sensing" stage. Cameras, radar, LiDAR, and ultrasonic sensors continuously scan the environment to detect lanes, vehicles, pedestrians, traffic signs, and obstacles.

Planning Layer (Driving Policy)
Once the data is collected, the vehicle's onboard ECUs and AI algorithms analyze it on the perception layer in real time. This layer determines the appropriate driving maneuvers and policies based on the output of the perception layer. It evaluates distances, tracks moving objects, and determines whether the vehicle needs to make an adjustment or simply continue on its path.

Action / Alert Layer
Finally, the system responds. Depending on the situation, it can alert the driver with visual, audio, or haptic warnings or take corrective action, such as braking, steering assistance, or adjusting headlights.

At oToBrite, we focus on the Perception layers by providing automotive cameras, ECUs (Electronic Control Units), and vision-AI algorithms. Our solutions enable ADAS systems to detect hidden risks, track moving objects, and interpret complex traffic scenarios, essentially acting as the "eyes and brain" of the vehicle. By delivering accurate and reliable perception capabilities, allowing the Planning and Action/Alert layer to make timely and correct decisions.

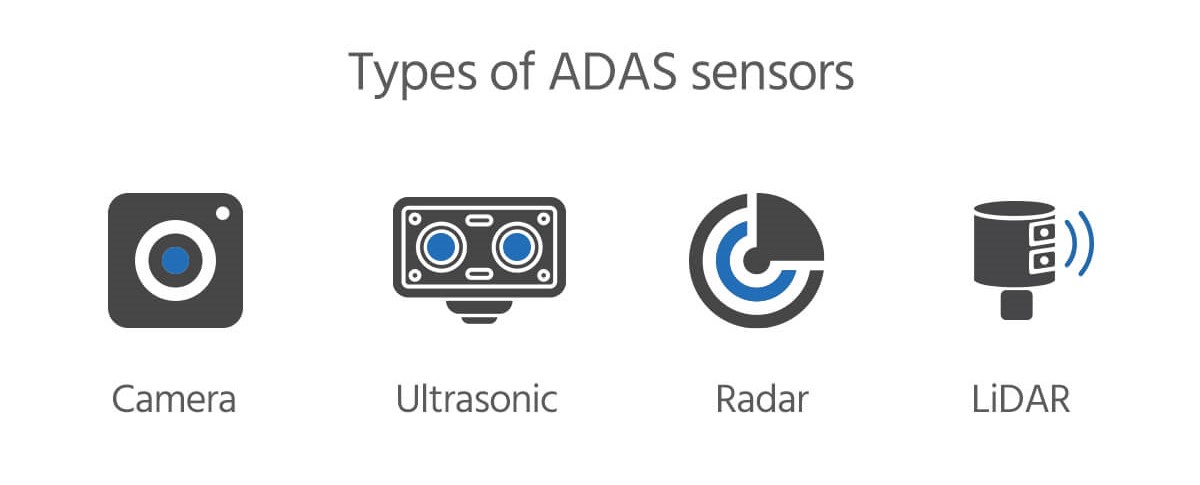

What Are The Different Types of ADAS Sensors?

The primary types of ADAS (Advanced Driver-Assistance Systems) sensors include cameras, radar, LiDAR, and ultrasonic sensors, each playing a unique role in monitoring the vehicle’s surroundings and enhancing driving safety.

Camera (Vision-Based): Cameras capture high-resolution images, enabling detection of lanes, traffic signs, vehicles, and pedestrians. They are the primary sensor for most commercial ADAS, providing rich visual data, cost-effectiveness, and AI compatibility.

Radar (Millimeter-Wave): Radar uses radio waves to detect object distance and speed, performing reliably in poor visibility conditions such as rain, fog, or darkness. It is frequently combined with cameras for features like adaptive cruise control, and blind spot monitoring.

Ultrasonic Sensors: These sensors emit sound waves to detect nearby objects, typically used in parking assistance and low-speed maneuvers. They provide precise short-range detection, complementing cameras and radar.

LiDAR (Light Detection and Ranging): LiDAR creates high-precision 3D maps of the surroundings using laser pulses. While extremely accurate, it is more expensive and primarily used in experimental vehicles or high-end autonomous driving systems.

The Shift Toward Camera-Based ADAS

The history of ADAS began with simple sensors. Ultrasonic sensors were the earliest to be widely adopted, primarily for Level 0 features like parking assist. The introduction of millimeter-wave radar enabled more advanced Level 1 functions like Adaptive Cruise Control (ACC), which accurately measures distance and speed.

However, a true paradigm shift occurred with the integration of cameras. Cameras provide a rich, detailed visual feed that is essential for recognizing complex, real-world elements like lane markings, traffic signs, traffic lights, and road infrastructure. Since the world is designed for human vision, cameras are uniquely equipped to interpret it, enabling the development of more sophisticated Level 2 and above ADAS features.

This includes capabilities like Lane Keeping Assist (LKA), Lane Change Assist (LCA), Traffic Sign Recognition (TSR), Automated Parking Assist (APA), and Automated Valet Parking (AVP). The power of vision-based systems has become so evident that some leading manufacturers are now pursuing a pure-vision strategy, using cameras as the sole foundation for their high-level ADAS, paving the way for end-to-end autonomous driving systems. This trend underscores the camera’s critical role, demonstrating its ability to deliver an unprecedented level of environmental understanding that was previously impossible with other sensors alone.

oToBrite's Vision: The Eyes and Brains of Modern ADAS

At oToBrite, we recognize that the camera module is the most critical and complex sensor in the modern ADAS stack. We specialize in providing comprehensive automotive camera and ADAS solutions that act as the "eyes and brains" of the vehicle, particularly focusing on the crucial Perception layer.

oToBrite offers a full portfolio of automotive cameras, including front, rear, side, surround, driver monitoring (DMS), and visual inertial odometry (VIO) cameras, available in different resolutions, view angles, output formats, output interface.

What Makes oToBrite's Cameras Stand Out

• Passed 20+ automotive-grade tests
• Active Alignment Assembly for high-precision optics
• Most using reliable Sony and onsemi automotive-grade sensors
• IP67/IP69 waterproofing and -40°C to 85°C wide temperature tolerance
• Trusted by leading automotive companies such as Toyota, Mitsubishi Motors, Luxgen, Xpeng, and Daimler Truck, etc.
• Flexible options in resolution, view angle, output format, and interface

👉Explore oToBrite Automotive Camera Solutions

Beyond cameras, oToBrite empowers ADAS with vision-AI and ECU solutions, supporting smarter and safer driving from Level 1 to Level 2+.

👉Discover oToBrite ADAS Solutions

FAQs

1. What does ADAS mean?
ADAS stands for Advanced Driver Assistance Systems, which are technologies designed to assist drivers, improve road safety, and enhance driving comfort.

2. What are the features of ADAS?
Typical features include Adaptive Cruise Control, Lane Departure Warning, Automatic Emergency Braking, Blind Spot Detection, Parking Assistance, and Driver Drowsiness Detection.

3. How many levels are in ADAS?
There are six levels (0–5) for driving automation, as defined by SAE International. ADAS primarily falls within the Level 0 to Level 3 spectrum . Level 0 means no automation, while Level 3 represents partial automation.

4. How does ADAS work?
ADAS works by using sensors to collect data about the vehicle’s surroundings. The system’s controller processes this information and, through actuators, provides alerts or assists with braking, steering, or speed control to help prevent accidents.

5. Is ADAS the same as autonomous driving?
No. ADAS assists the driver, but autonomous driving at higher levels (4–5) allows the car to operate without human input in certain conditions.

6. What do all ADAS sensors have in common?
The most common are cameras, radar, LiDAR, and ultrasonic sensors with cameras increasingly becoming the dominant choice.
