GMSL™ Camera Jetson Developer Kit

GMSL™ Camera Jetson Developer Kit

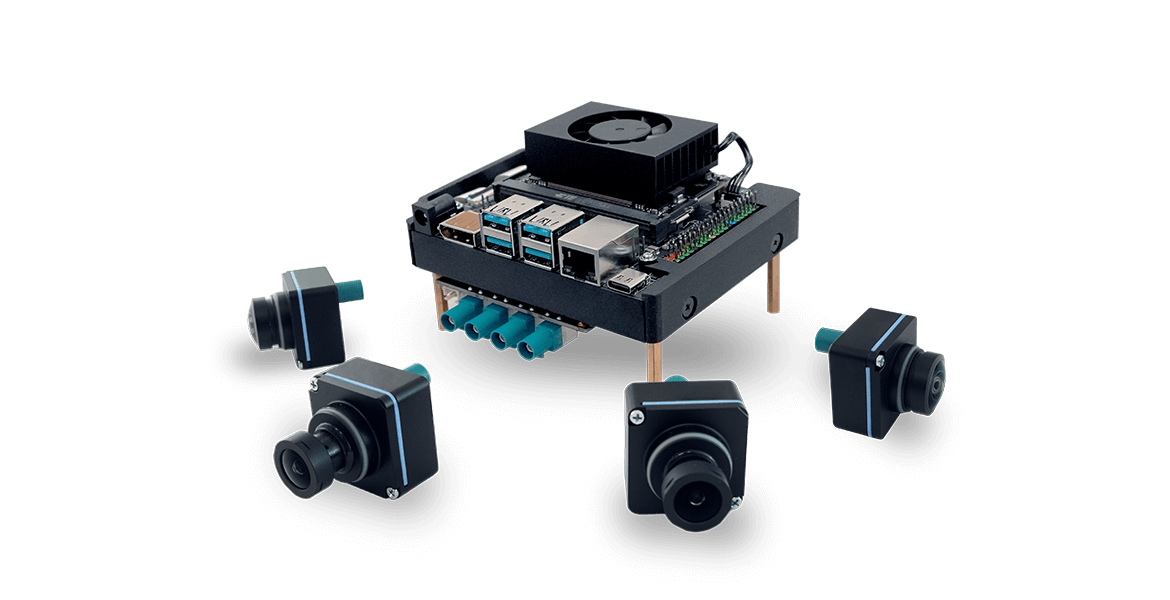

NVIDIA Jetson Orin™ Nano Developer Kit

NVIDIA Jetson Orin Nano Super Developer Kit

The oToAdapter-GMSL-Orin-Nano is a developer kit designed for the NVIDIA Jetson Orin™ Nano, supporting up to four cameras and delivering up to 67 TOPS of AI performance. It provides the fastest and most compatible way to get started on the NVIDIA Jetson platform. With plug-and-play simplicity and pre-installed NVIDIA JetPack, it works seamlessly with all oToBrite GMSL™ cameras.



Compact, Powerful, and AI-Ready

The NVIDIA Jetson Orin™ Nano Super Developer Kit is a compact yet powerful computing platform that brings generative AI to small edge devices. It offers developers, students, and makers an affordable and accessible way to get started, supported by NVIDIA’s AI software stack and a broad AI ecosystem.

Learn more about NVIDIA Jetson Orin™





Camera for robot vision

Technical Information

MAX96724
Deserializer
Up to 4
GMSL™ input interface
2 × 22-Pin MIPI-CSI
MIPI output interface



Downloads    Datasheet



oToBrite GMSL™ Camera Modules

With plug-and-play simplicity and pre-installed NVIDIA JetPack, the oToAdapter-GMSL-Orin-Nano works seamlessly with all oToBrite GMSL™ cameras. The camera modules are listed as below.

Model Resolution / Shutter Type Sensor / Output Format View Angle Output Interface
oToCAM222-H61M 2MP / Rolling ISX021 / YUV422 64° GMSL2™
oToCAM222-C120M 2MP / Rolling ISX021 / YUV422 120.6° GMSL2™
oToCAM222-S195M 2MP / Rolling ISX021 / YUV422 195.9° GMSL2™
oToCAM223-H61M 3MP / Rolling ISX031 / YUV422 63.9° GMSL2™
oToCAM223-C120M 3MP / Rolling ISX031 / YUV422 120.6° GMSL2™
oToCAM223-S195M 3MP / Rolling ISX031 / YUV422 195.9° GMSL2™
oToCAM274ISP-H100M 3MP / Rolling IMX623 / YUV422 100° GMSL2™
oToCAM274ISP-S195M 3MP / Rolling IMX623 / YUV422 195° GMSL2™
oToCAM260ISP-C30M 5MP / Rolling IMX490 / YUV422 30° GMSL2™
oToCAM260ISP-C62M 5MP / Rolling IMX490 / YUV422 62.5° GMSL2™
oToCAM260ISP-C120M 5MP / Rolling IMX490 / YUV422 120° GMSL2™
oToCAM260 5MP / Rolling IMX490 / RAW 30° GMSL2™
oToCAM260-N92M 5MP / Rolling IMX490 / RAW 92° GMSL2™
oToCAM261 5MP / Rolling IMX490 / RAW 120° GMSL2™
oToCAM262 5MP / Rolling IMX490 / RAW 62.5° GMSL2™
oToCAM271ISP-N30M 8MP / Rolling IMX728 / YUV422 30° GMSL2™
oToCAM271ISP-N70M 8MP / Rolling IMX728 / YUV422 70° GMSL2™
oToCAM271ISP-N120M 8MP / Rolling IMX728 / YUV422 120° GMSL2™
oToCAM276ISP-N30M 8MP / Rolling AR0823 / YUV422 30° GMSL2™
oToCAM276ISP-N120M 8MP / Rolling AR0823 / YUV422 120° GMSL2™

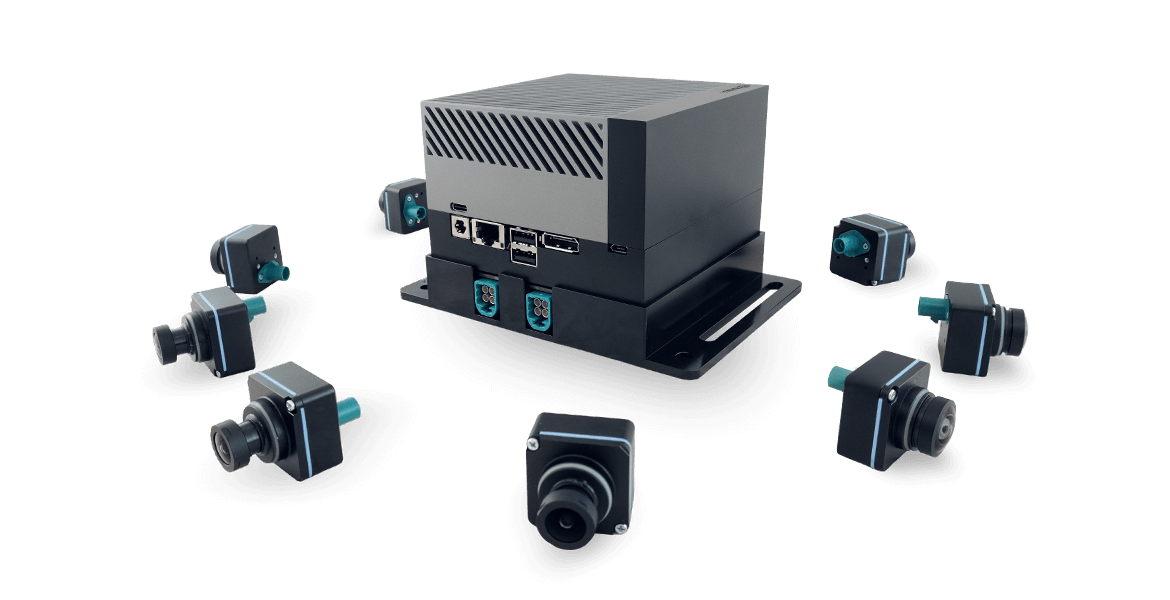

NVIDIA Jetson AGX Orin™ Developer Kit

NVIDIA Jetson AGX Orin Developer Kit

The oToAdapter-GMSL-AGX-Orin is a developer kit designed for the NVIDIA Jetson AGX Orin™, supporting up to eight cameras and delivering up to 275 TOPS of AI performance. It provides the fastest and most compatible way to get started on the NVIDIA Jetson platform. With plug-and-play simplicity and pre-installed NVIDIA JetPack, it works seamlessly with all oToBrite GMSL™ cameras.

A Powerful Platform for Robotics

The NVIDIA Jetson AGX Orin™ Developer Kit and all Jetson Orin™ modules are built on a shared System-on-Chip (SoC) architecture. This design enables the Developer Kit to emulate any of the modules, making it easy to begin developing your next AI-powered product. It serves as a powerful supercomputer tailored for generative AI, robotics, and computer vision applications.

Learn more about NVIDIA Jetson Orin™





Camera for robot vision

Technical Information

MAX96724
Deserializer
Up to 8
GMSL™ input interface
1 × 120-Pin
MIPI output interface


Downloads    Datasheet



oToBrite GMSL™ Camera Modules

With plug-and-play simplicity and pre-installed NVIDIA JetPack, the oToAdapter-GMSL-AGX-Orin works seamlessly with all oToBrite GMSL™ cameras. The camera modules are listed as below.

Model Resolution / Shutter Type Sensor / Output Format View Angle Output Interface
oToCAM222-H61M 2MP / Rolling ISX021 / YUV422 64° GMSL2™
oToCAM222-C120M 2MP / Rolling ISX021 / YUV422 120.6° GMSL2™
oToCAM222-S195M 2MP / Rolling ISX021 / YUV422 195.9° GMSL2™
oToCAM223-H61M 3MP / Rolling ISX031 / YUV422 63.9° GMSL2™
oToCAM223-C120M 3MP / Rolling ISX031 / YUV422 120.6° GMSL2™
oToCAM223-S195M 3MP / Rolling ISX031 / YUV422 195.9° GMSL2™
oToCAM274ISP-H100M 3MP / Rolling IMX623 / YUV422 100° GMSL2™
oToCAM274ISP-S195M 3MP / Rolling IMX623 / YUV422 195° GMSL2™
oToCAM260ISP-C30M 5MP / Rolling IMX490 / YUV422 30° GMSL2™
oToCAM260ISP-C62M 5MP / Rolling IMX490 / YUV422 62.5° GMSL2™
oToCAM260ISP-C120M 5MP / Rolling IMX490 / YUV422 120° GMSL2™
oToCAM260 5MP / Rolling IMX490 / RAW 30° GMSL2™
oToCAM260-N92M 5MP / Rolling IMX490 / RAW 92° GMSL2™
oToCAM261 5MP / Rolling IMX490 / RAW 120° GMSL2™
oToCAM262 5MP / Rolling IMX490 / RAW 62.5° GMSL2™
oToCAM271ISP-N30M 8MP / Rolling IMX728 / YUV422 30° GMSL2™
oToCAM271ISP-N70M 8MP / Rolling IMX728 / YUV422 70° GMSL2™
oToCAM271ISP-N120M 8MP / Rolling IMX728 / YUV422 120° GMSL2™
oToCAM276ISP-N30M 8MP / Rolling AR0823 / YUV422 30° GMSL2™
oToCAM276ISP-N120M 8MP / Rolling AR0823 / YUV422 120° GMSL2™

NVIDIA Jetson AGX Orin™ Adapter Board

NVIDIA Jetson AGX Orin Adapter Board

The oToAdapter-GMSL-AGX-Orin-Board is a specialized adapter board designed for the NVIDIA Jetson AGX Orin™ Developer Kit. It supports up to eight GMSL™ cameras and provides an efficient and compatible path to developing multi-camera AI applications on the NVIDIA Jetson ecosystem. With plug-and-play simplicity and full compatibility with the NVIDIA JetPack environment, it ensures seamless integration with all oToBrite GMSL™ cameras.

A Powerful Platform for Robotics

The NVIDIA Jetson AGX Orin™ Developer Kit and all Jetson Orin™ modules are built on a shared System-on-Chip (SoC) architecture. This design enables the Developer Kit to emulate any of the modules, making it easy to begin developing your next AI-powered product. It serves as a powerful supercomputer tailored for generative AI, robotics, and computer vision applications.

Learn more about NVIDIA Jetson Orin™





Camera for robot vision

Technical Information

MAX96724
Deserializer
Up to 8
GMSL™ input interface
1 × 120-Pin
MIPI output interface


Downloads    Datasheet



oToBrite GMSL™ Camera Modules

With plug-and-play simplicity and NVIDIA JetPack, the oToAdapter-GMSL-AGX-Orin-Board works seamlessly with all oToBrite GMSL™ cameras. The camera modules are listed as below.

Model Resolution / Shutter Type Sensor / Output Format View Angle Output Interface
oToCAM222-H61M 2MP / Rolling ISX021 / YUV422 64° GMSL2™
oToCAM222-C120M 2MP / Rolling ISX021 / YUV422 120.6° GMSL2™
oToCAM222-S195M 2MP / Rolling ISX021 / YUV422 195.9° GMSL2™
oToCAM223-H61M 3MP / Rolling ISX031 / YUV422 63.9° GMSL2™
oToCAM223-C120M 3MP / Rolling ISX031 / YUV422 120.6° GMSL2™
oToCAM223-S195M 3MP / Rolling ISX031 / YUV422 195.9° GMSL2™
oToCAM274ISP-H100M 3MP / Rolling IMX623 / YUV422 100° GMSL2™
oToCAM274ISP-S195M 3MP / Rolling IMX623 / YUV422 195° GMSL2™
oToCAM260ISP-C30M 5MP / Rolling IMX490 / YUV422 30° GMSL2™
oToCAM260ISP-C62M 5MP / Rolling IMX490 / YUV422 62.5° GMSL2™
oToCAM260ISP-C120M 5MP / Rolling IMX490 / YUV422 120° GMSL2™
oToCAM260 5MP / Rolling IMX490 / RAW 30° GMSL2™
oToCAM260-N92M 5MP / Rolling IMX490 / RAW 92° GMSL2™
oToCAM261 5MP / Rolling IMX490 / RAW 120° GMSL2™
oToCAM262 5MP / Rolling IMX490 / RAW 62.5° GMSL2™
oToCAM271ISP-N30M 8MP / Rolling IMX728 / YUV422 30° GMSL2™
oToCAM271ISP-N70M 8MP / Rolling IMX728 / YUV422 70° GMSL2™
oToCAM271ISP-N120M 8MP / Rolling IMX728 / YUV422 120° GMSL2™
oToCAM276ISP-N30M 8MP / Rolling AR0823 / YUV422 30° GMSL2™
oToCAM276ISP-N120M 8MP / Rolling AR0823 / YUV422 120° GMSL2™

Let’s find the perfect solution for you
