JX-A03_TVI oToCAM167-C103V

Name: JX-A03_TVI oToCAM167-C103V
Availability: MadeToOrder

JX-A03_TVI oToCAM167-C103V

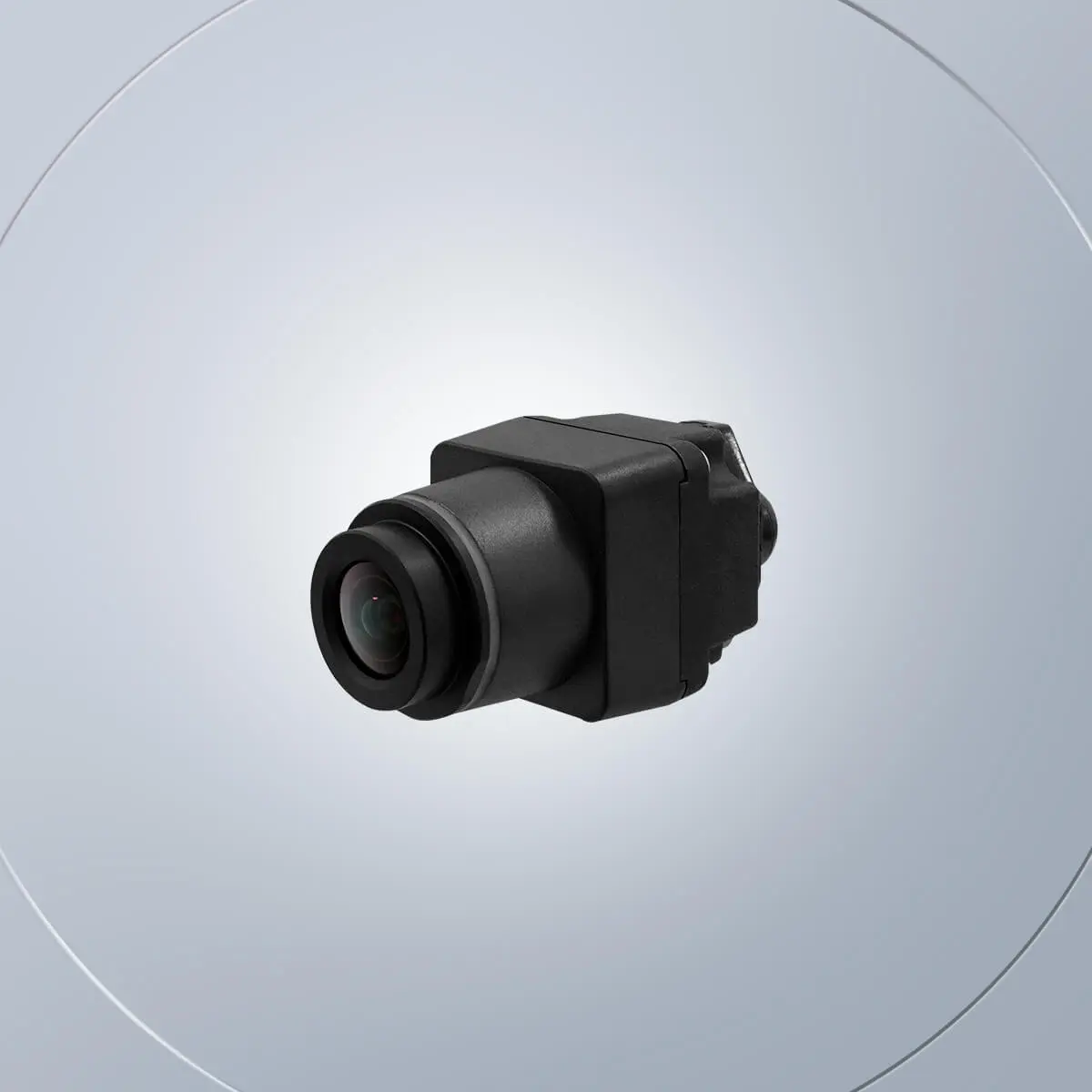

The oToCAM167-C103V is the automotive-grade camera featuring high-sensitivity 1/2.7”CMOS sensors. This camera uses a TVI interface with analog signal output, and support image resolutions up to Full HD. The oToCAM167-C103V, with a HFOV of approximately 103 degrees, is well-suited for autonomous driving applications.

Product Features

Robust and durable to withstand extreme environments

oToBrite’s camera modules are built through specialized production processes and rigorously tested to meet IP67 and IP69K standards, ensuring excellent dust and water resistance. These camera modules undergo vibration tests to ensure durability in harsh conditions and feature defogging capabilities to maintain clear vision in humid or rapidly changing environments. These features make the cameras highly reliable in extreme environments, capable of operating at temperatures ranging from -40°C to +85°C. Whether used in desert, mountainous, or wet, humid climates, oToBrite’s camera modules consistently provide stable and clear image output.

Cutting-edge active alignment technology for image precision

oToBrite’s proprietary 5/6-axis active alignment technology significantly enhances optical precision by minimizing the optical axis deviation to just 1 pixel. This ensures that every pixel in the image maintains optimal clarity, delivering superior image quality. By integrating advanced optical design with automated manufacturing processes, this technology achieves unprecedented alignment accuracy, allowing the system to produce sharp and clear images.

Clearer image quality with SOI sensor technology

The JX-A03 sensor features a 1936 × 1088 resolution with SOI’s 3.0 μm pixel technology, delivering up to 60 fps in Full HD mode and 30 fps in HDR mode. Equipped with an on-chip 10-bit ADC, programmable gain control (PGA), and correlated double sampling (CDS), it effectively reduces fixed pattern noise (FPN) for clearer images.
